There are many kinds of glass classifications, Gelivable team will sort out and share with you. Feel free to comment below.
#Classification of Glass by Chemical Composition:
① Soda lime glass. Mainly SiO2, also contains 15% Na2O and 16% CaO
② Aluminosilicate glass. SiO2 and Al2O3 as main compositions.
③ Quartz glass. SiO2 content is greater than 99.5%
④ High silica glass. SiO2 content is about 96%
⑤ Lead silicate glass. The main compositions are SiO2 and PbO
⑥ Borosilicate glass. SiO2 and B2O3 as main components
⑦ Phosphate glass. P2O5 is the main component
PS: ③~⑦ are hardly used for touch screens, so these are not introduced here.
Glass raw materials can be divided into two types according to processing:
① Float glass
② Overflow method
- Float glass:
① Definition of Float Glass:
Float glass uses common glass-making raw materials, typically consisting of sand, soda ash (sodium carbonate), dolomite, limestone, and salt cake (sodium sulfate) etc. After being melted at a high temperature in the furnace, the molten glass flows continuously from the kiln to the molten metal surface, spreading out into a flame-polished glass strips with uniform thickness. After cooling and hardening, it is separated from the molten metal and then annealed and cut into a transparent colorless flat glass.

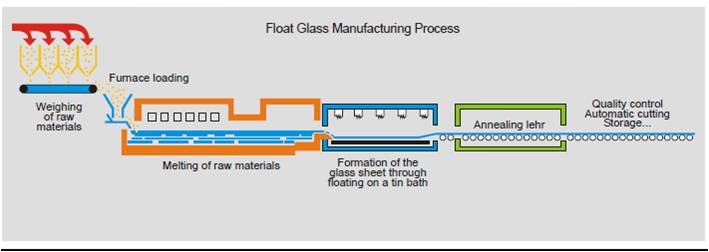

② The forming process of float glass
It is completed in a tin tank with protective gas, so float glass has a tin surface and air surface.

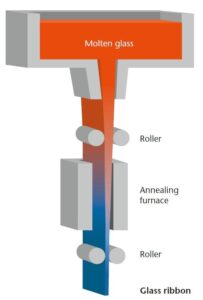

- Overflow method:
Therefore, the overflow glass has no tin surface and air surface difference.
Soda Lime Glass Introduction
- Soda Lime Glass
The processing method is float process, also known as float glass. Because it contains a small amount of iron ions,and it looks green from the side of the glass, so it is also called green glass.
- Soda Lime Glass Thickness
0.3 ~ 10.0 mm
- Brands of Soda Lime Glass (not all)
Japanese Materials:
Asahi Glass (AGC), Nippon Sheet Glass (NSG), Central Glass (CENTRAL), etc.
Chinese materials:
CSG, Xinyi, Luobo, AVIC, Jinjing, etc.
China Taiwan Material:
Taiwan Glass.
Aluminosilicate Glass
- Brand (common)
United States:
Corning Gorilla Glass
It is an environmentally friendly aluminosilicate glass produced by Corning company in the United States.
Japan:
AGC company produces high aluminum glass, Dragon-trail Glass. In south China, it is called “Dragon-trail glass”, however in North China, it is called “Rising dragon glass”.
China:
The high aluminum glass produced by Xuhong Company is called “Panda Glass”.
Chemical Strengthening of Glass
- Principle:
Chemical strengthening is a process that toughens the surface of glass by replacing sodium ions(Na+) with larger potassium ions(K+). The ion exchange creates a thin layer of high compression on the surface which results in a layer of tension in the center. The process is performed by submerging the glass in a molten salt bath(KNO3).

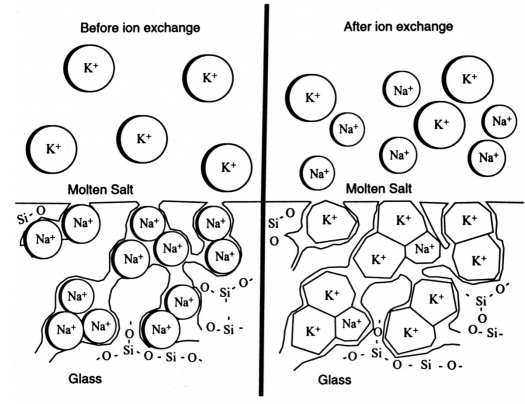

Schematic diagram:
- Chemically Strengthened Test Items
- Stress layer DOL: depth
- Stress value CS: surface
- Surface hardness
- Drop ball test (damage test)
- Glass processing
* Test data for chemical strengthened

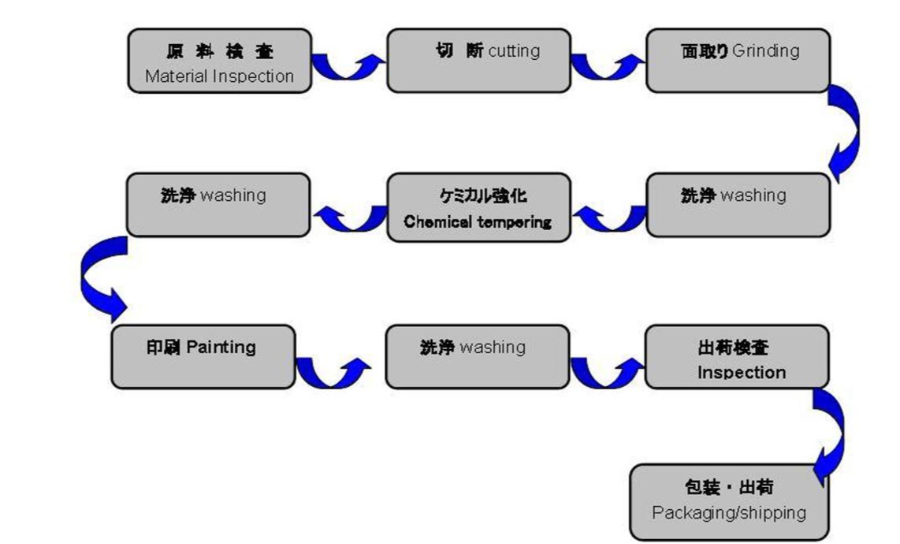

- Glass processing process
